Lineario Shop & Office

LED luminaires from the Lineario series designed for quick, tool-free connection into continuous light lines. Available in lengths from 1.2 m to 6 m. Ideal for commercial spaces, supermarkets, and production facilities. Intended for suspended installation.

The luminaire is certified by the National Institute of Public Health (PZH).

Ask about this product

Customize the fixture:

Diffuser

Opal or microprismatic – you decide.

Size

Available in various sizes – choose the one that perfectly fits your space.

Color temperature

Warm, neutral, or cool light? Or perhaps special versions, such as Tunable White?

Housing colors

Available in any shade from the RAL or NCS palette.

To determine individual modification options, consult our sales representative.

Technical data:

Input voltage	220-240V AC 50-60Hz
Luminaire power	10-50W
Light efficacy	160-180lm/W
Color temperature	2700-6500K
Color rendering index	CRI/Ra>80-97

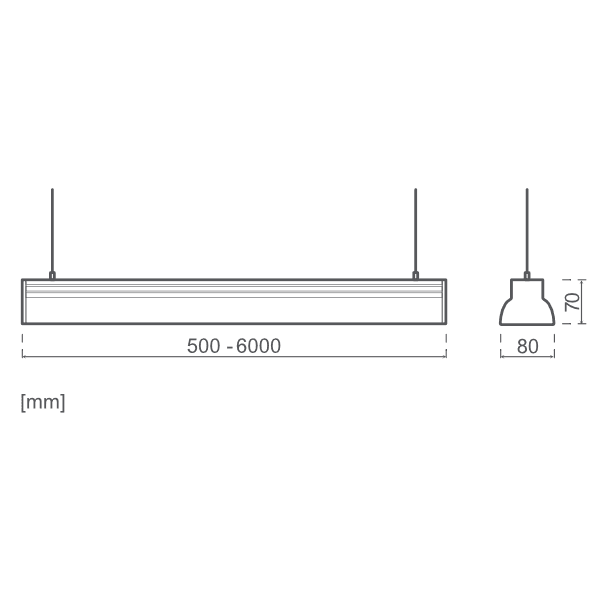

Dimmensions (WxH)	1205 / 1500 / 3000 x 80 x 70 mm
Diffuser	PMMA microprismatic / PMMA opal
Housing	Powder coated aluminium
Mounting	suspended
Index of protection	IP20
Lifespan L80B10	50.000h to 80% initial brightness
Operating and storage conditions	-20°C - 40°C
Relative humidity	20 - 65%
Available vesions	DALI, 1-10V, TRIAC, other luminaire power
Other available color temperatures	2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K, Tunable white and higher CRI/Ra (Ra>97)

Lineario Shop

Code	Lenght	Power	Fixture luminous flux*	Light efficacy	Color temp	Ra / CRI
OLS-15-33-830	1500 mm	33W	5260 lm	159 lm/W	3000K	CRI/Ra>80/90
OLS-15-33-840	1500 mm	33W	5500 lm	167 lm/W	4000K	CRI/Ra>80/90
OLS-15-33-865	1500 mm	33W	5470 lm	166 lm/W	6500K	CRI/Ra>80/90
OLS-15-43-830	1500 mm	43W	6820 lm	159 lm/W	3000K	CRI/Ra>80/90
OLS-15-43-840	1500 mm	43W	7120 lm	166 lm/W	4000K	CRI/Ra>80/90
OLS-15-43-865	1500 mm	43W	7070 lm	164 lm/W	6500K	CRI/Ra>80/90
OLS-20-43-830	2000 mm	43W	6840 lm	159 lm/W	3000K	CRI/Ra>80/90
OLS-20-43-840	2000 mm	43W	7140 lm	166 lm/W	4000K	CRI/Ra>80/90
OLS-20-43-860	2000 mm	43W	7100 lm	165 lm/W	6500K	CRI/Ra>80/90
OLS-20-73-830	2000 mm	73W	11600 lm	159 lm/W	3000K	CRI/Ra>80/90
OLS-20-73-840	2000 mm	73W	12050 lm	165 lm/W	4000K	CRI/Ra>80/90
OLS-20-73-860	2000 mm	73W	11980 lm	164 lm/W	6500K	CRI/Ra>80/90
OLS-30-64-830	3000 mm	64W	10210 lm	160 lm/W	3000K	CRI/Ra>80/90
OLS-30-64-840	3000 mm	64W	10680 lm	167 lm/W	4000K	CRI/Ra>80/90
OLS-30-64-865	3000 mm	64W	10500 lm	164 lm/W	6500K	CRI/Ra>80/90
OLS-30-85-830	3000 mm	85W	13470 lm	158 lm/W	3000K	CRI/Ra>80/90
OLS-30-85-840	3000 mm	85W	14060 lm	165 lm/W	4000K	CRI/Ra>80/90
OLS-30-85-860	3000 mm	85W	13970 lm	164 lm/W	6500K	CRI/Ra>80/90

*tolerancja +/-10%

Lineario Office

Code	Lenght	Power	Fixture luminous flux*	Light efficacy	Color temp	Ra / CRI
OLO-12-25-830	1205 mm	25W	3990 lm	160 lm/W	3000K	CRI/Ra>80/90
OLO-12-34-830	1205 mm	34W	5400 lm	159 lm/W	3000K	CRI/Ra>80/90
OLO-12-25-840	1205 mm	25W	4160 lm	166 lm/W	4000K	CRI/Ra>80/90
OLO-12-34-840	1205 mm	34W	5670 lm	167 lm/W	4000K	CRI/Ra>80/90
OLO-12-25-865	1205 mm	25W	4120 lm	165 lm/W	6500K	CRI/Ra>80/90
OLO-12-34-865	1205 mm	34W	5630 lm	166 lm/W	6500K	CRI/Ra>80/90

*tolerancja +/-10%
