LED Panel Office Light
LED panel luminaires with excellent performance parameters. High-efficiency SMD LEDs and an opal or microprismatic diffuser with high light transmittance ensure strong luminous flux and outstanding light uniformity. Ideal for offices, conference rooms, classrooms, supermarkets, hospitals, and laboratories.

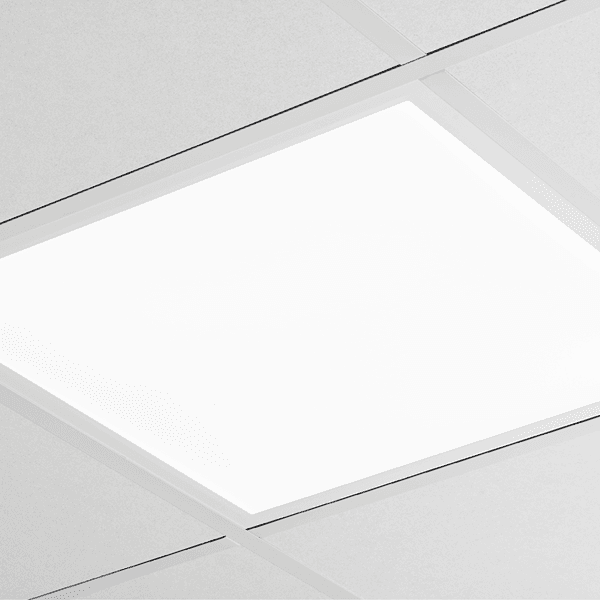

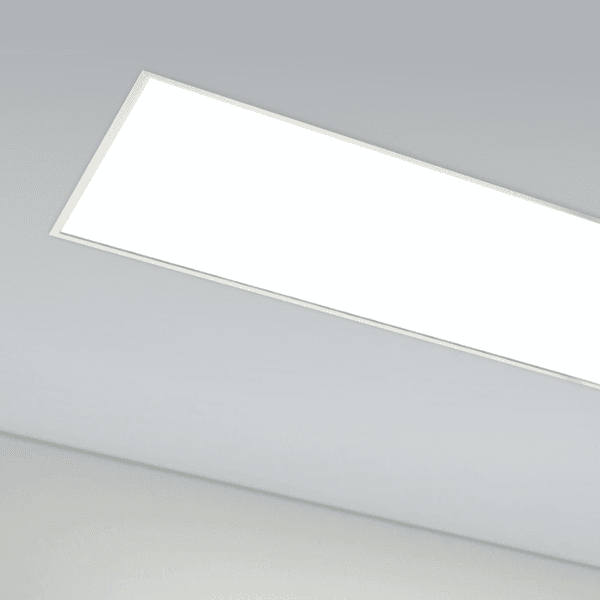

Designed for recessed installation in modular or plasterboard ceilings, as well as surface mounting. A perfect replacement for fluorescent fixtures.
The luminaire is certified by the National Institute of Public Health (PZH).
Customize the fixture:
Installation

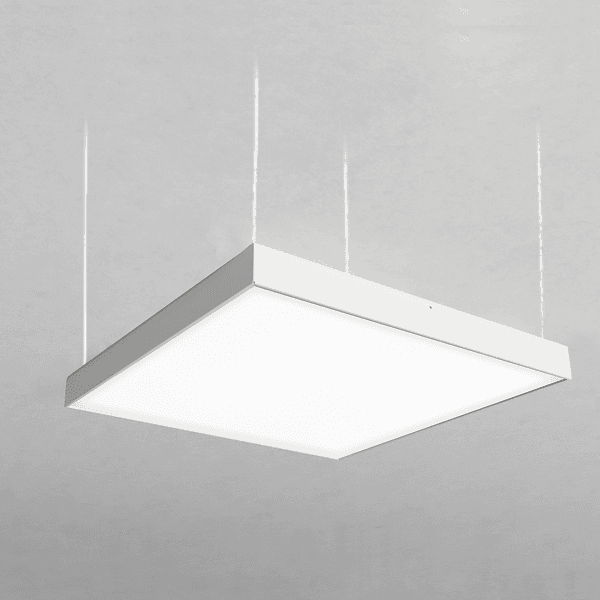

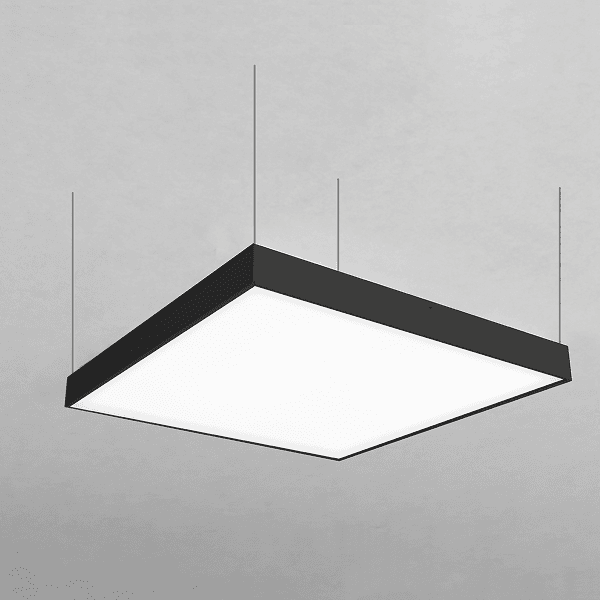

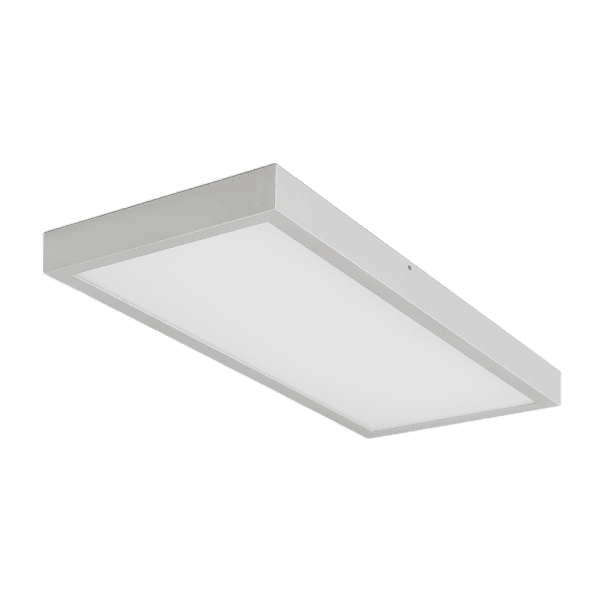

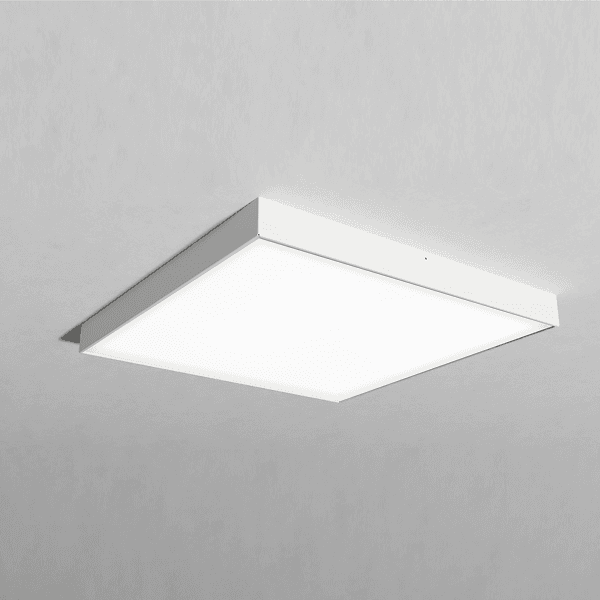

Choose a recessed, surface-mounted or suspended version.
Diffuser
Opal or microprismatic – you decide.
Size
Available in various sizes – choose the one that perfectly fits your space.
Color temperature
Warm, neutral, or cool light? Or perhaps special versions, such as Tunable White?
Housing colors
Available in any shade from the RAL or NCS palette.
PLUSH series
Hand-stitched with premium upholstery fabric. Installation options within the upholstered finish – suspended.
To determine individual modification options, consult our sales representative.
Technical data:
| Input voltage | 220-240V AC 50-60Hz |
| Luminaire power | 20W - 60W |
| Light efficacy | 140-160lm/W |
| Color temperature | 2700-6500K / Tunable White |
| Color rendering index | CRI/Ra>80-97 |

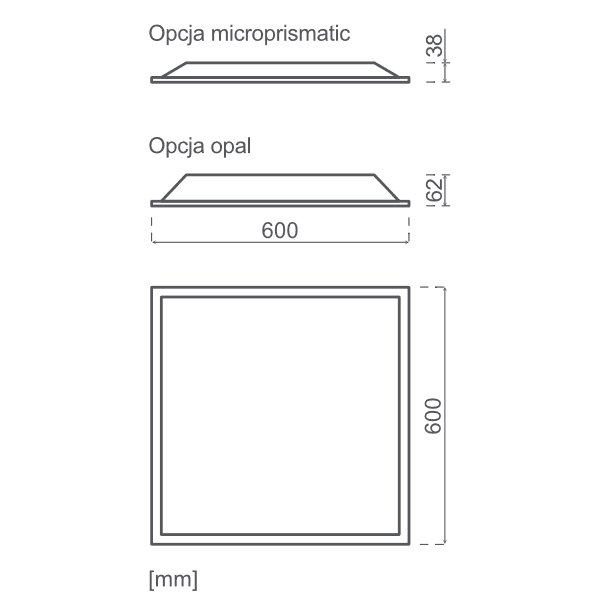

| Dimmensions (WxH) | 595 x 595 x 62 mm recessed / 600 x 600 x 58 mm surface-mounted |
| Diffuser | PMMA microprismatic / PMMA opal / tempered glass |
| Housing | Powder coated aluminium |
| Mounting | recessed / surface-mounted / suspended |
| Index of protection | IP44 / IP65 |
| Lifespan L80B10 | 50.000h to 80% initial brightness |
| Operating and storage conditions | -20°C - 40°C |
| Relative humidity | 20 - 65% |
| Available vesions | DALI, 1-10V, TRIAC, other luminaire power |
| Other available color temperatures | Ra/CRI>90, Ra/CRI>95, 2700-6500K, Tunable White |
| Code | Power | Fixture luminous flux* | Light efficacy | Color temp | Ra / CRI |
|---|---|---|---|---|---|
| PL-6060-30-830 | 30W | 4500 lm | 150 lm/W | 3000K | CRI/Ra>80/90 |
| PL-6060-30-840 | 30W | 4700 lm | 157 lm/W | 4000K | CRI/Ra>80/90 |
| PL-6060-35-830 | 35W | 5000 lm | 143 lm/W | 3000K | CRI/Ra>80/90 |
| PL-6060-35-840 | 35W | 5300 lm | 151 lm/W | 4000K | CRI/Ra>80/90 |
| PL-6060-43-830 | 43W | 6200 lm | 144 lm/W | 3000K | CRI/Ra>80/90 |
| PL-6060-43-840 | 43W | 6500 lm | 151 lm/W | 4000K | CRI/Ra>80/90 |
*tolerance +/-10%
